Motion Control Fibronaire

The Fibronaire and Fiberweigh instruments were developed by Motion Control in Dallas, Texas. The Fiberweigh instrument is a sensitive scale used to weigh a sample of cotton fiber for micronaire testing. Once a sample of 50 grains is obtained with the Fiberweigh, the sample is placed in the glass chamber at the base of the Fibronaire instrument. The Fibronaire plunger compresses the sample to a fixed volume and a laminar flow of air passes through the lint. The airflow measurement is used to evaluate the sample micronaire. Cotton fiber physical properties impacting the flow of air through the sample, such as fiber maturity and fiber fineness, impact the micronaire measurement. Thus, micronaire is a function of both cotton fiber fineness and fiber maturity. The success of the Fibronaire instrument in providing an objective measure of fiber quality for marketing led to the development of modern High Volume Instruments (HVI). The Micronaire chamber on modern HVI is based on the same measurement principle.

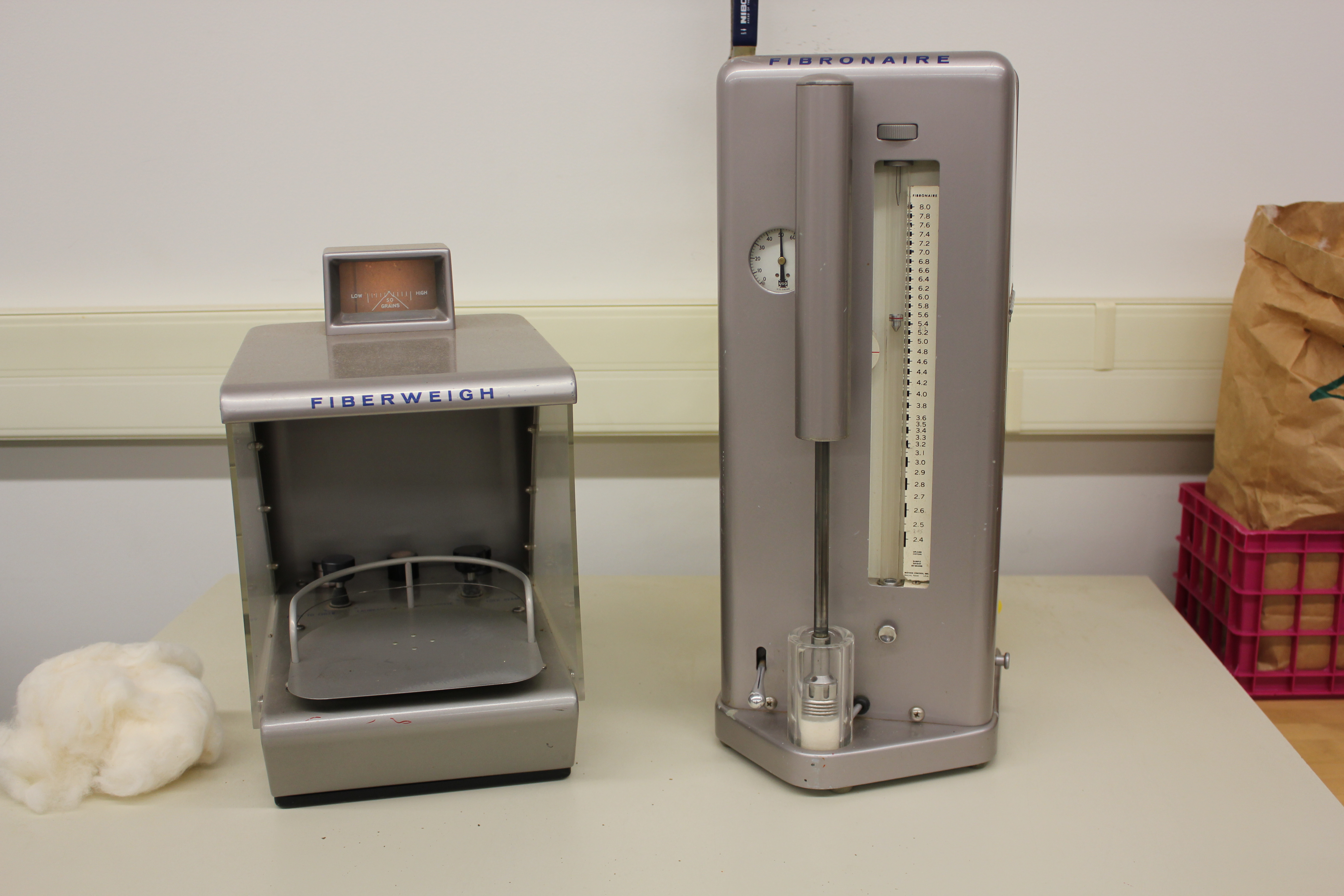

Motion Control Fibronaire and Fiberweigh Instruments at the Fiber & Biopolymer Research Institute, Plant & Soil Science, Texas Tech Univeristy.
Brendan Kelly, 2015

Sample loaded on the Fiberweigh scale.
Brendan Kelly, 2015

Close-up of readout on the Fiberweigh zeroing in on proper sample mass for testing (50 grains).
Brendan Kelly, 2015

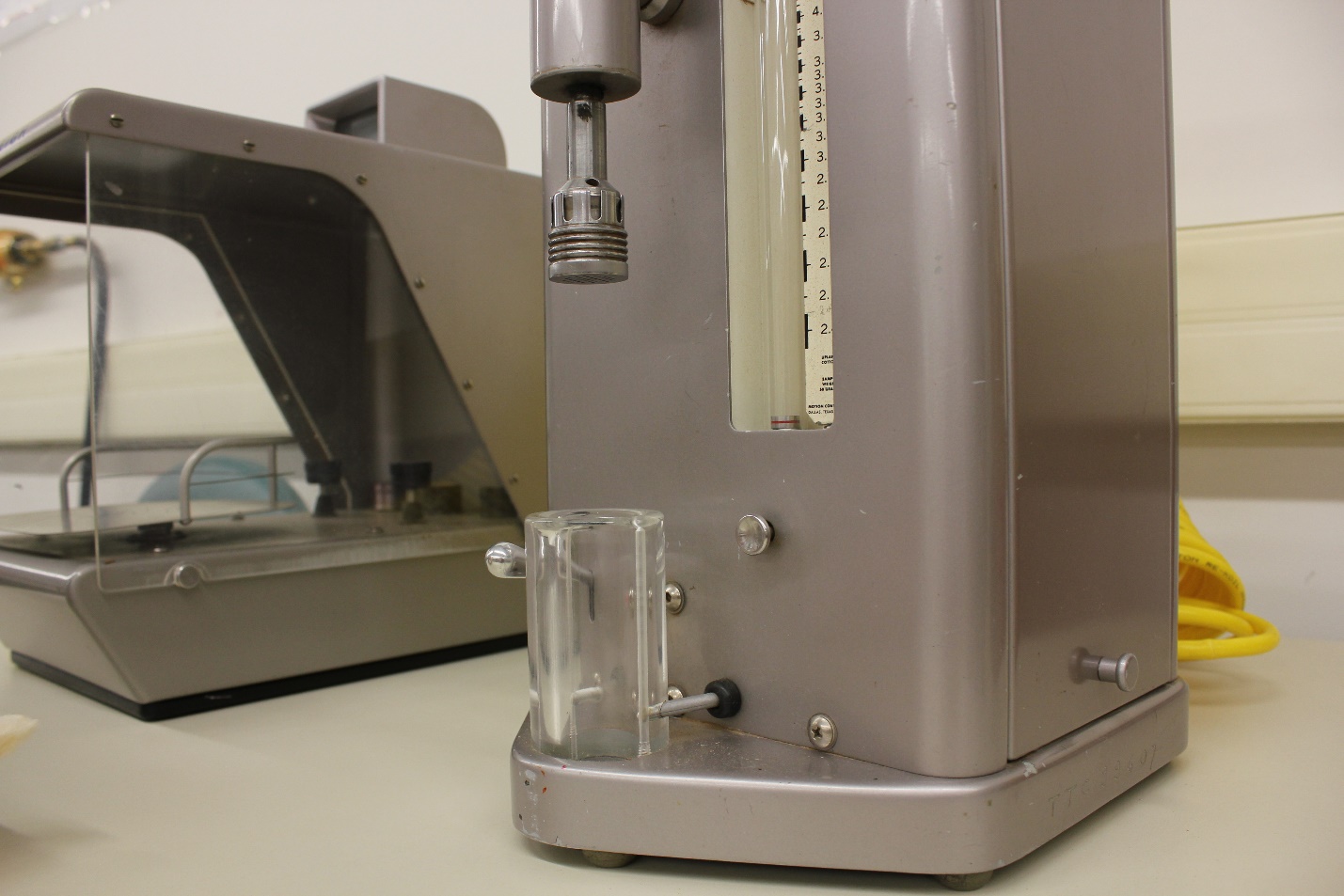

Close-up of Fibronaire plunger and glass sample airflow chamber, Fiberweigh in background.
Brendan Kelly, 2015

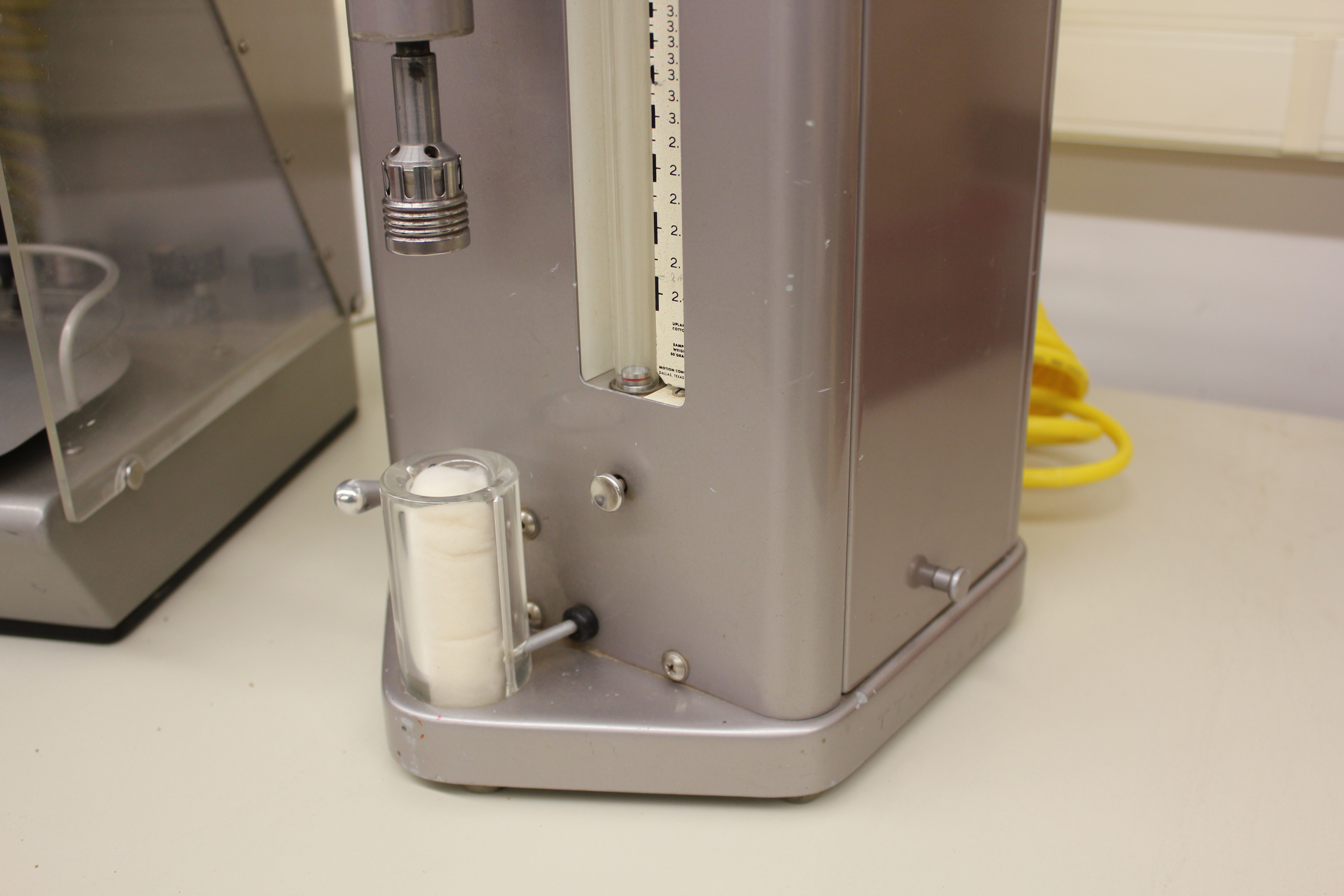

Fibronaire Instrument loaded and ready for testing.
Brendan Kelly, 2015

Instrument in operation indicating a Fibronaire of 5.5.
Brendan Kelly, 2015

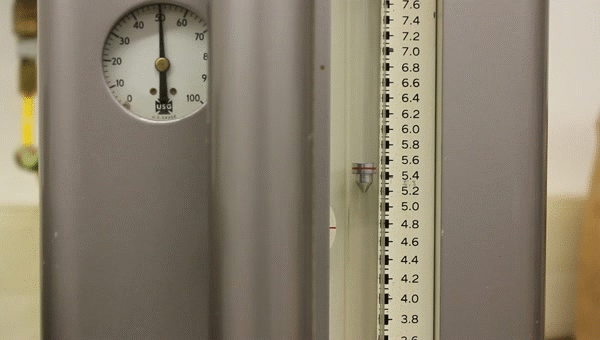

Instrument float indicating a Fibronaire of 5.5
Brendan Kelly, 2015
